B4 Cheat Code Chassis

Description

The Cheat Code Tactical Chassis was designed to house our custom precision rifles and we have decided to make these user configurable chassis available to you. Currently we are offering them as a presale for Remington 700 and clone actions.

The Cheat Code has a monolithic main body and forend cut from 7075 aluminum and weighs in at 4 pounds. We designed the chassis with all of the wants and needs for the end user.

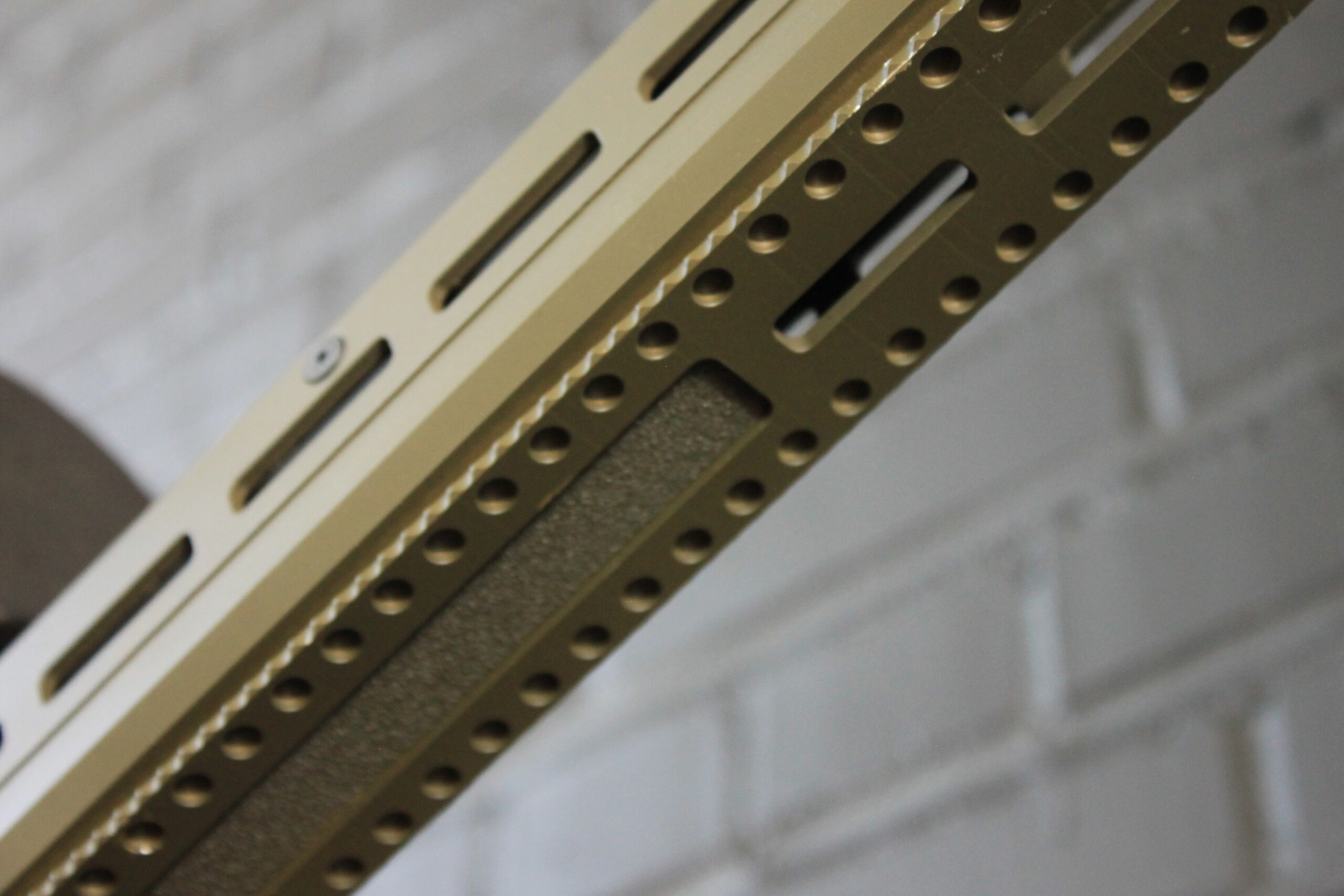

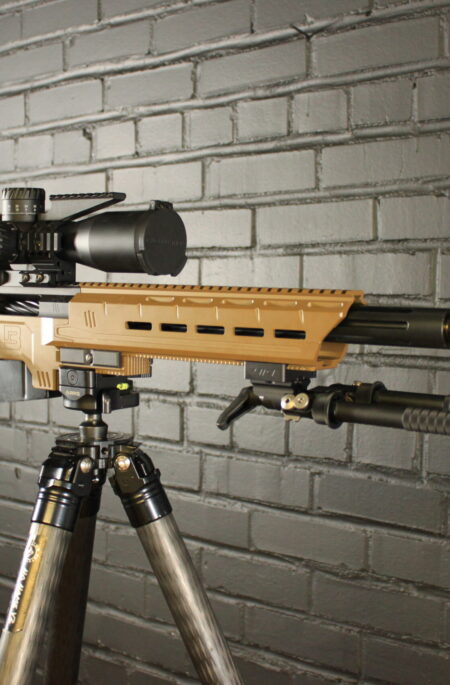

The arca rail on the bottom of the forend includes RRS Lock and Area 419 arca lock. At the front there are two mlock slots for attaching a picatinny rail as a bipod attachment option. Behind the mlock slots and centered is a recessed section for adding grip tape for a secure adhesion to shooting bags without interfering with the arca attachments.

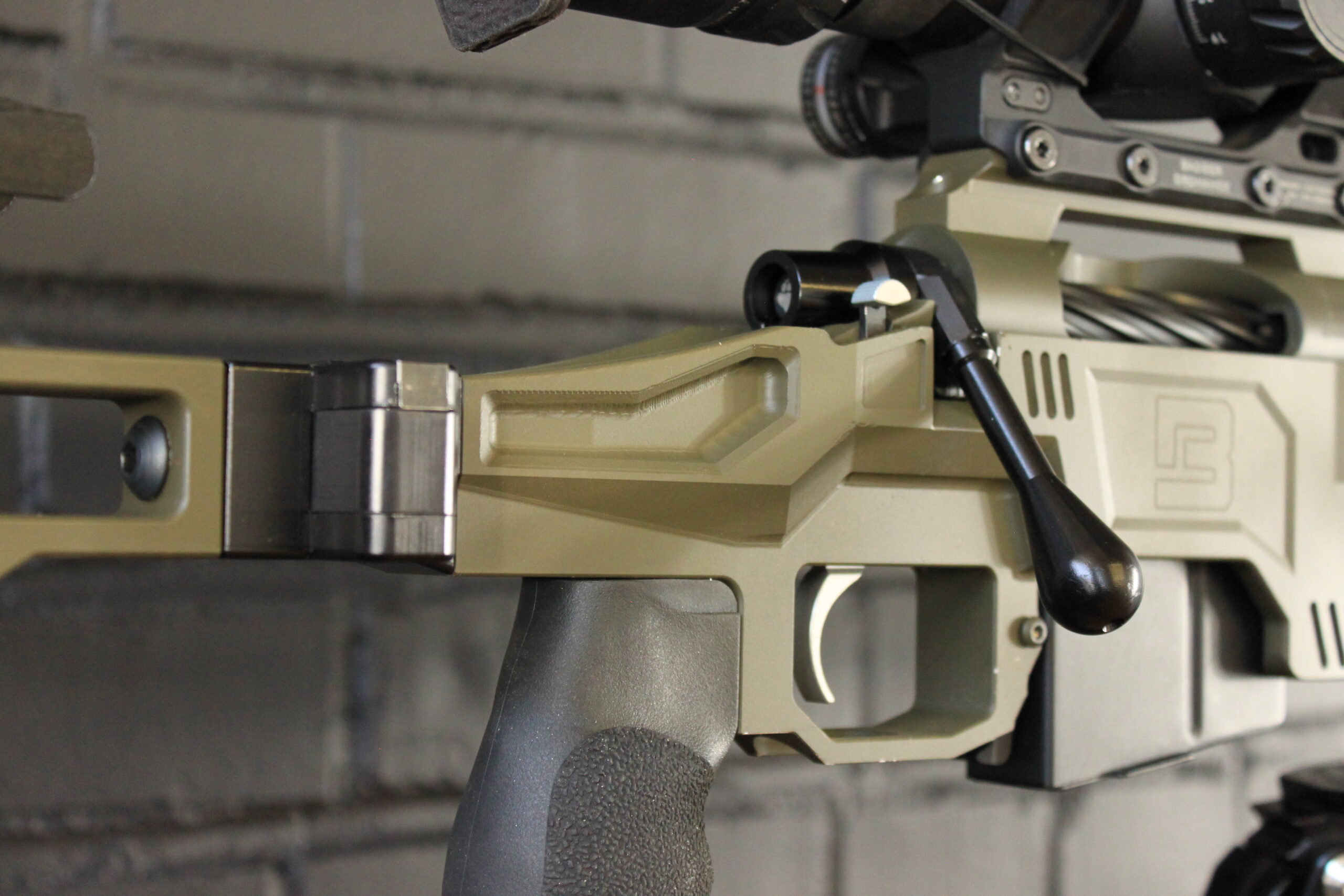

We have recessed a thumb rest into the chassis to reduce snag points and overall profile of the chassis at the shooters hand.

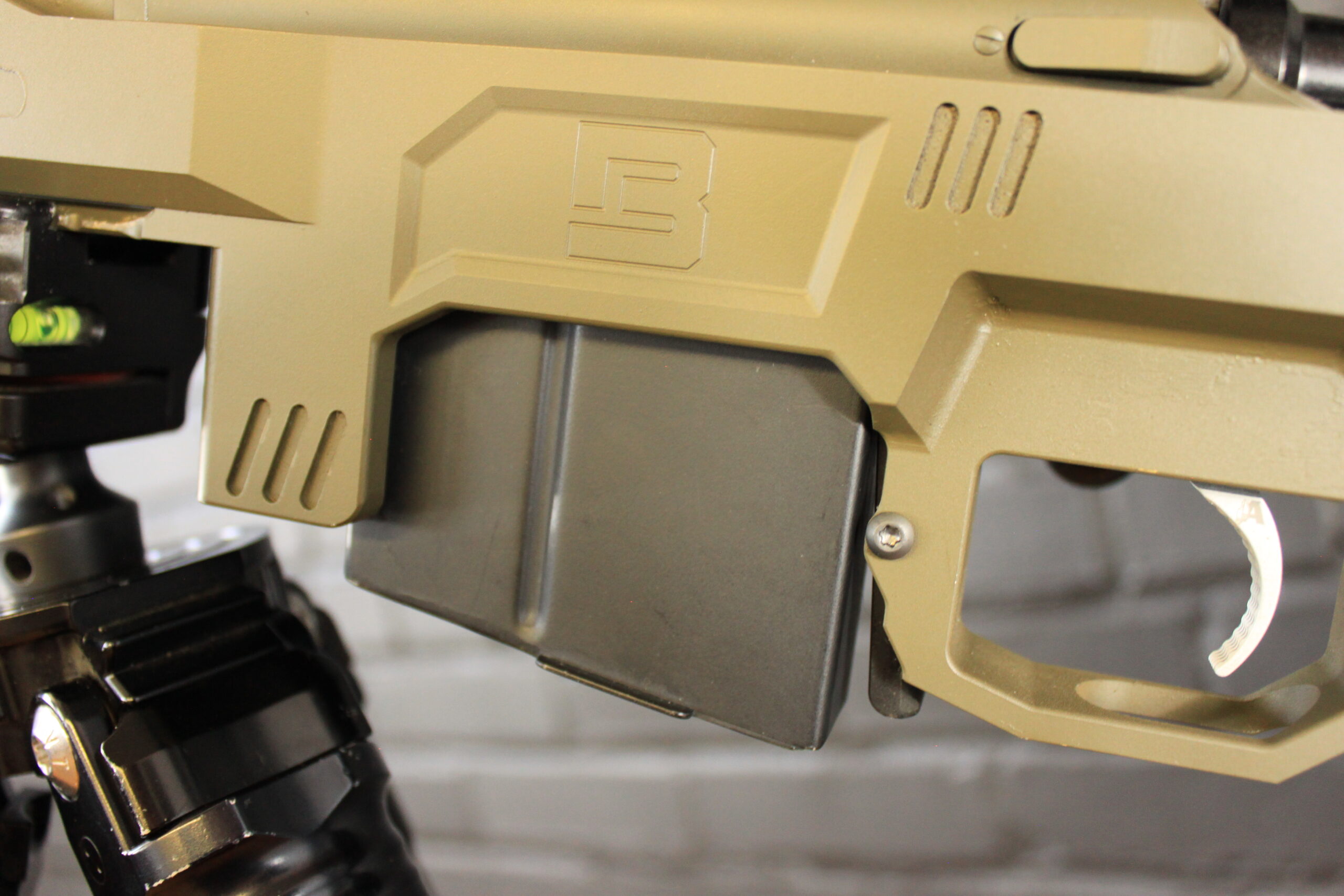

The magwell and mag catch are designed to accept both AICS and AW mags.

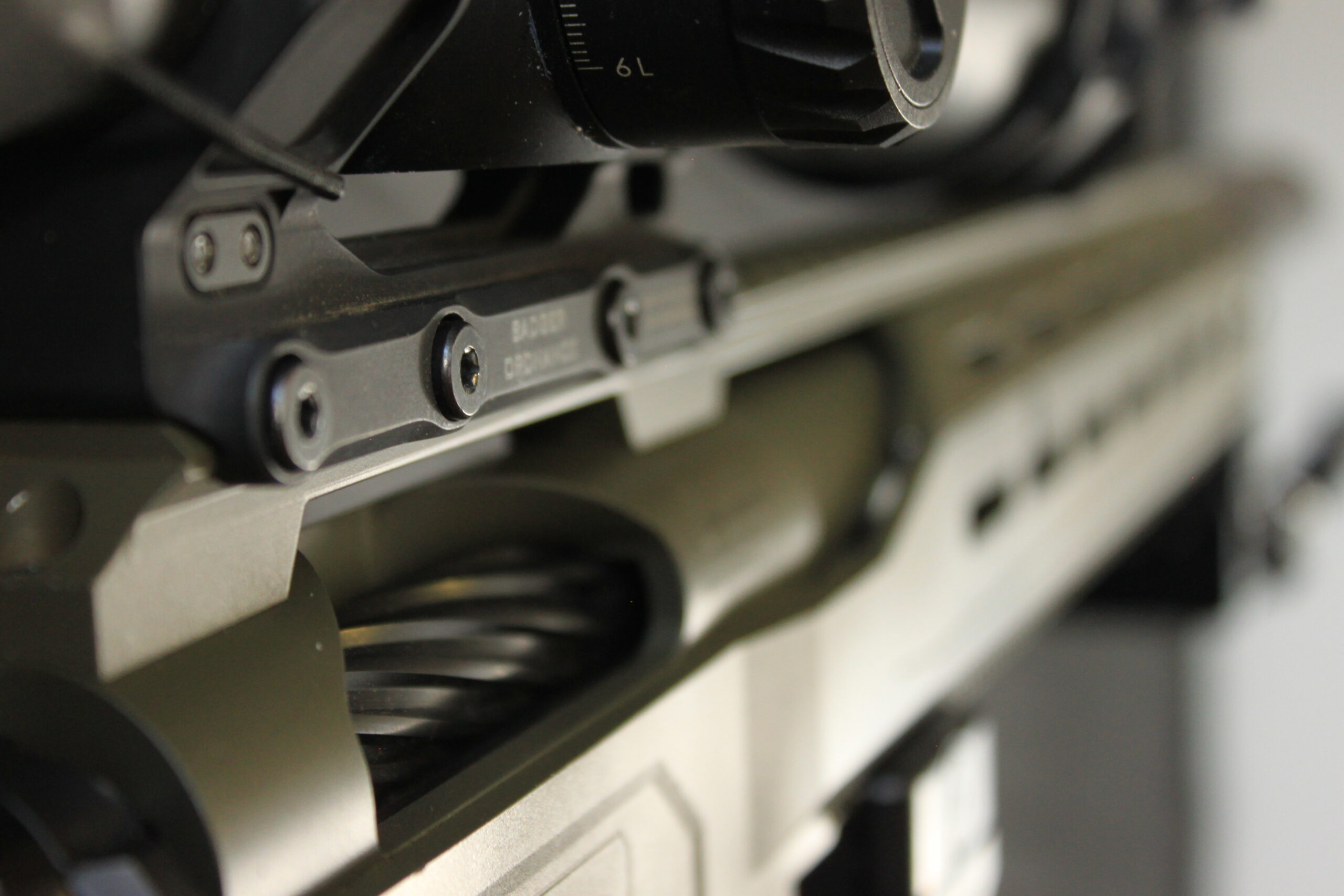

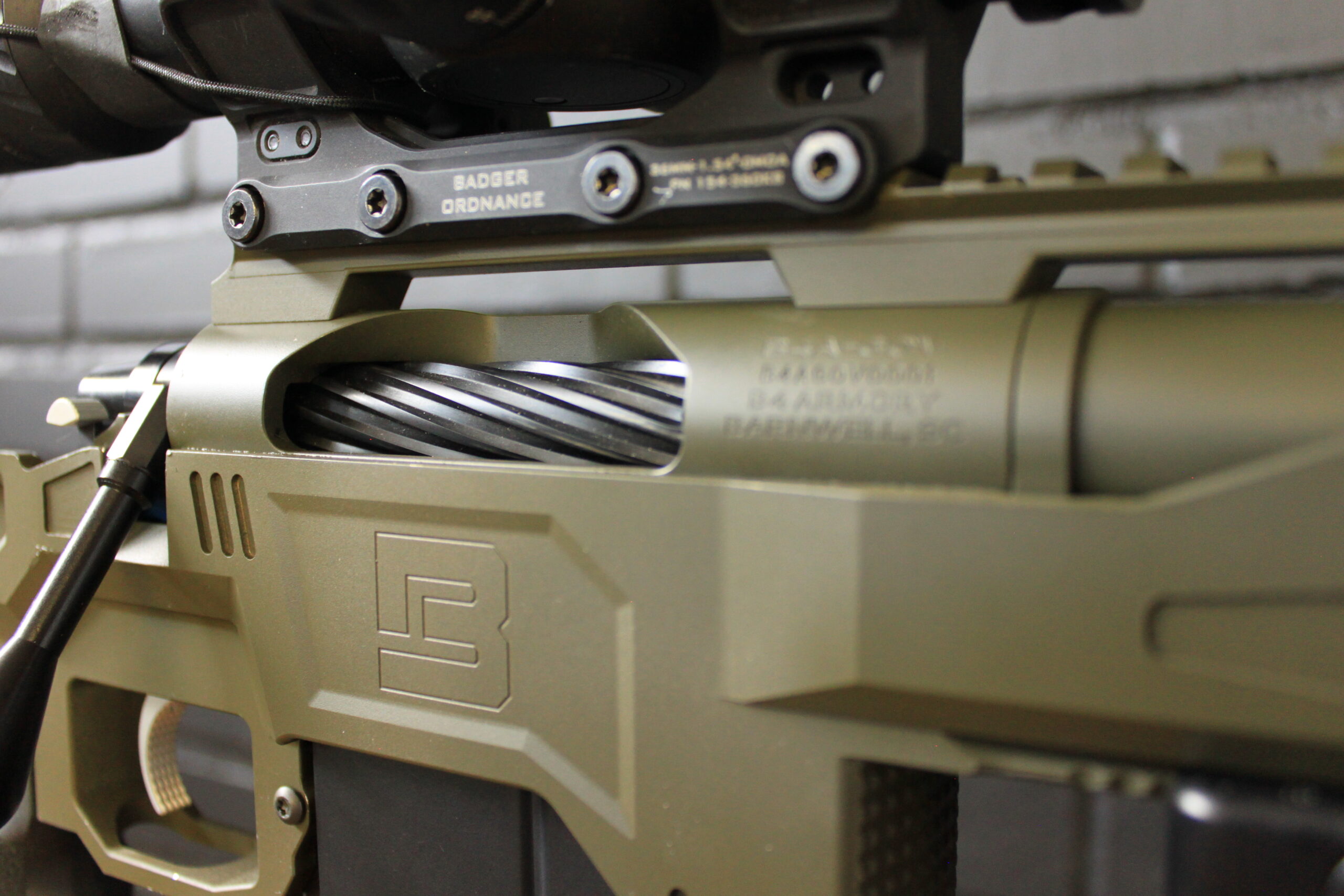

The top cover tightly slides into the forend and held in place with screws tightened from the outside. There are multiple recoil lugs on the top of the cover to accept our pic rail options.

One of the desires we had was to maintain optical alignment with night vision and thermal clip-ons. We have made one of the rail options to be a full length top rail from the front of the chassis and connects to the top of your action with your current 6-48 or 8-40 screws.

For users that have actions with integral rails on their actions we have an optional 8″ rail giving you the real estate needed to mount your night vision device correctly based on your day optic size.

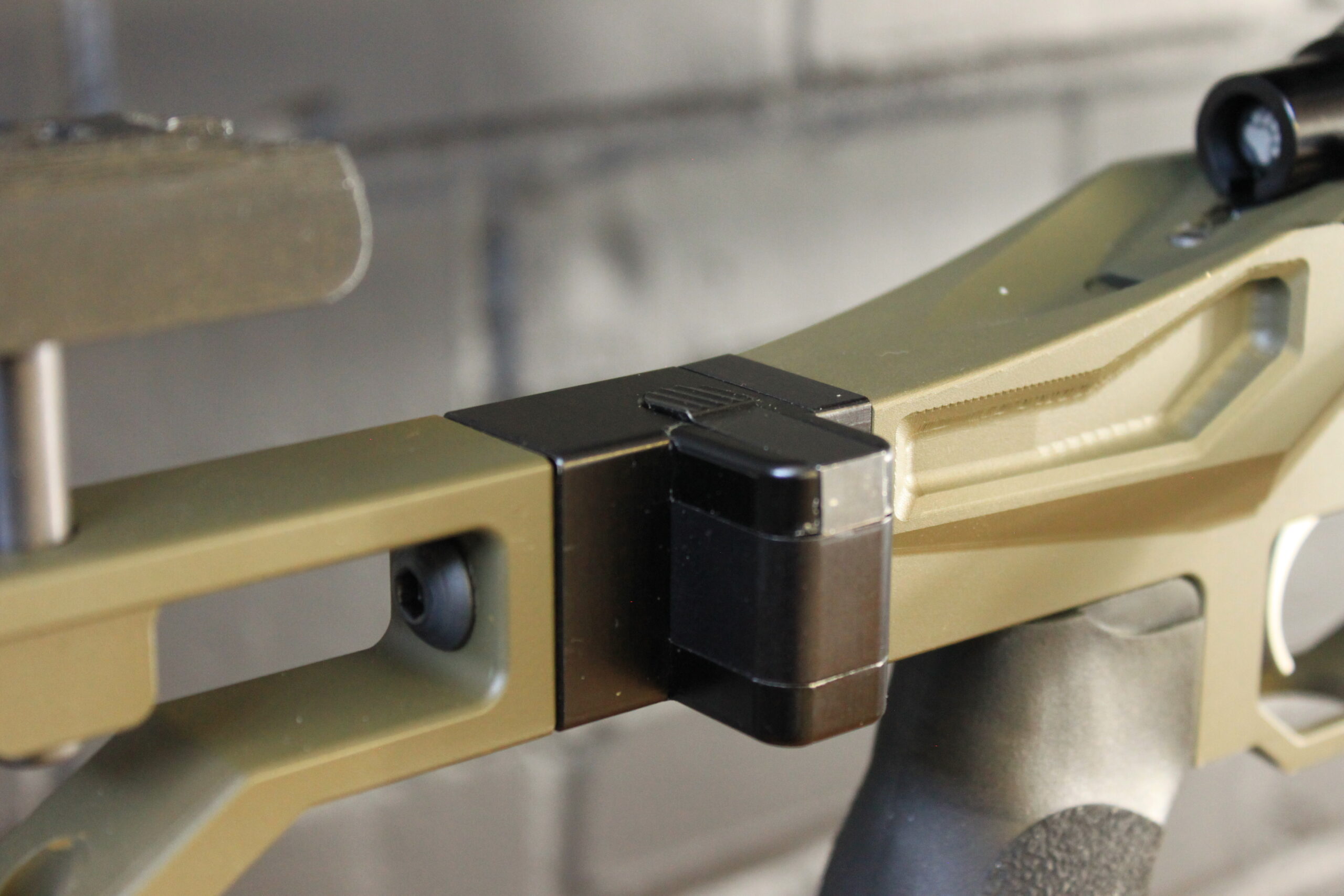

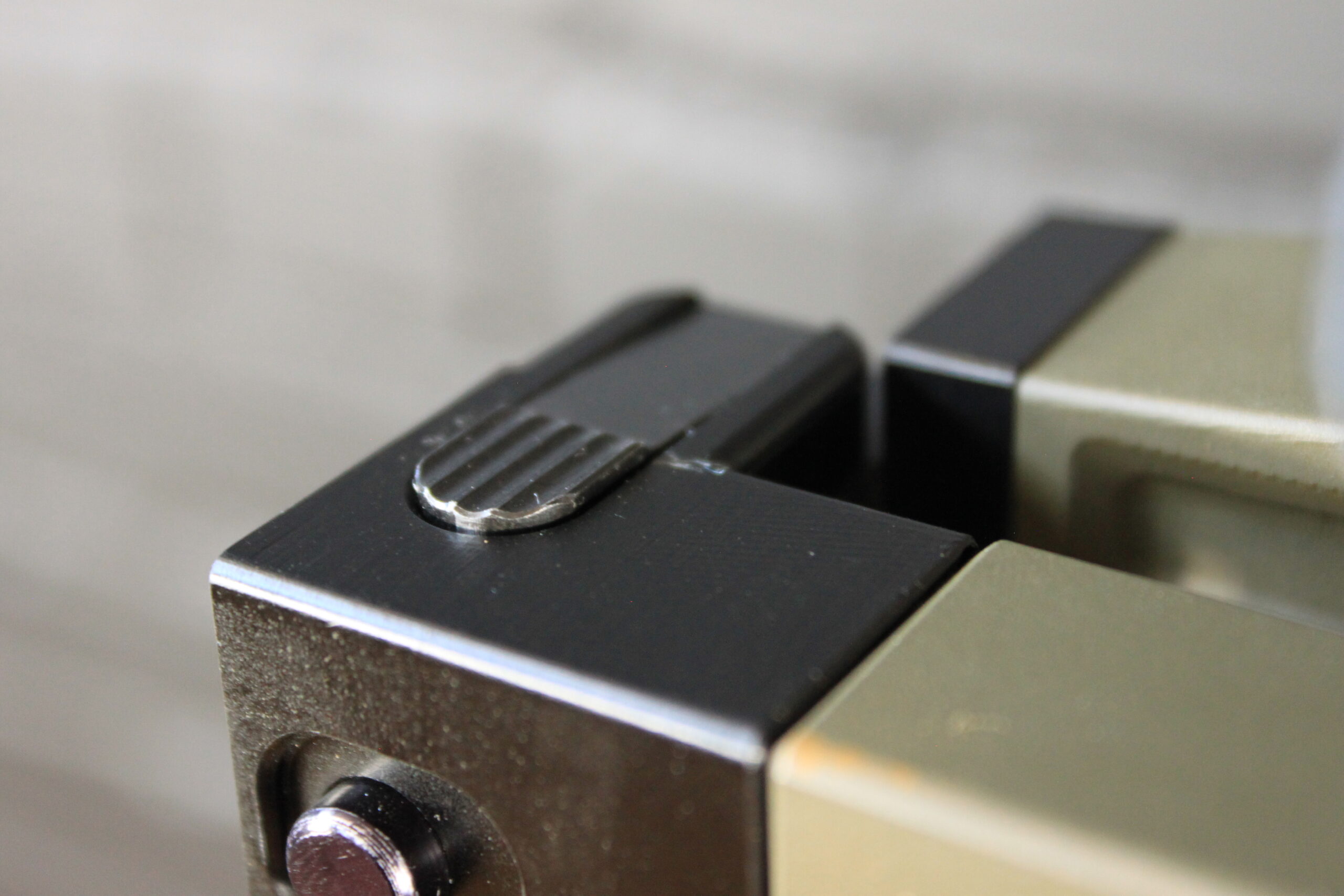

The Cheat Code comes with a fixed stock but we have made a folder as an optional upgrade. Our folder is the same that is included with the Concealable Sniper System. It has a simple push button fold and locks in the folded position. In order to extend the stock simply press the button on the top of the folder and extend.

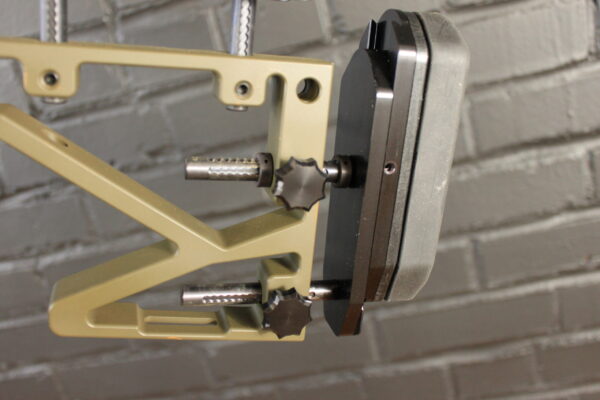

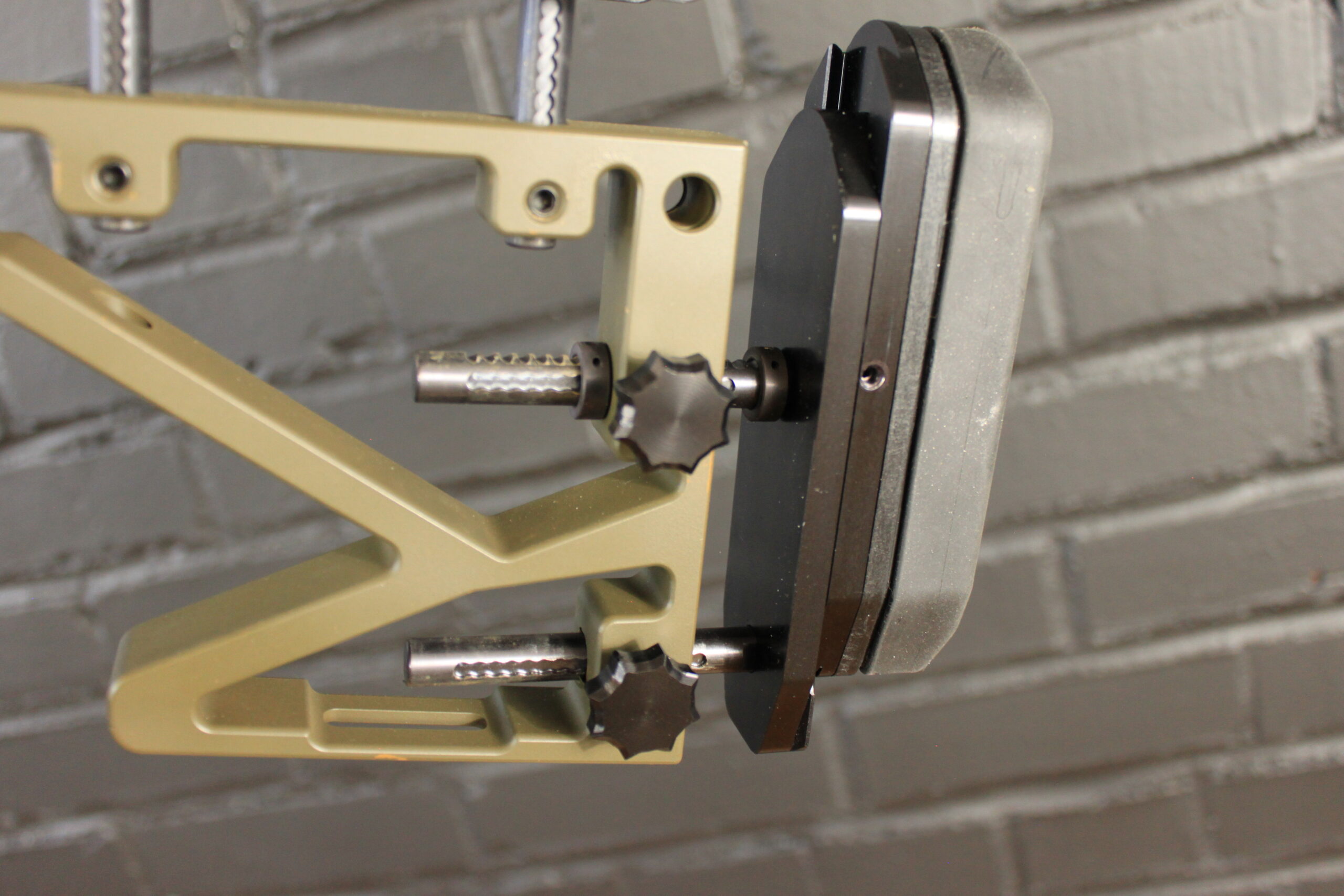

The buttstock is user configurable with a set and forget cheek riser in order to reduce snag points. Height of the buttpad can be adjusted to match the needed cheek weld height. Length of pull has to set points to allow the shooter to set a normal or prone LOP and an alternate LOP for shooting with body armor and/or shooting from a barricade or tripod. The LOP adjustments are held in place with thumb screws designed by B4 Armory to be easy to use in all conditions to include gloved manipulation.

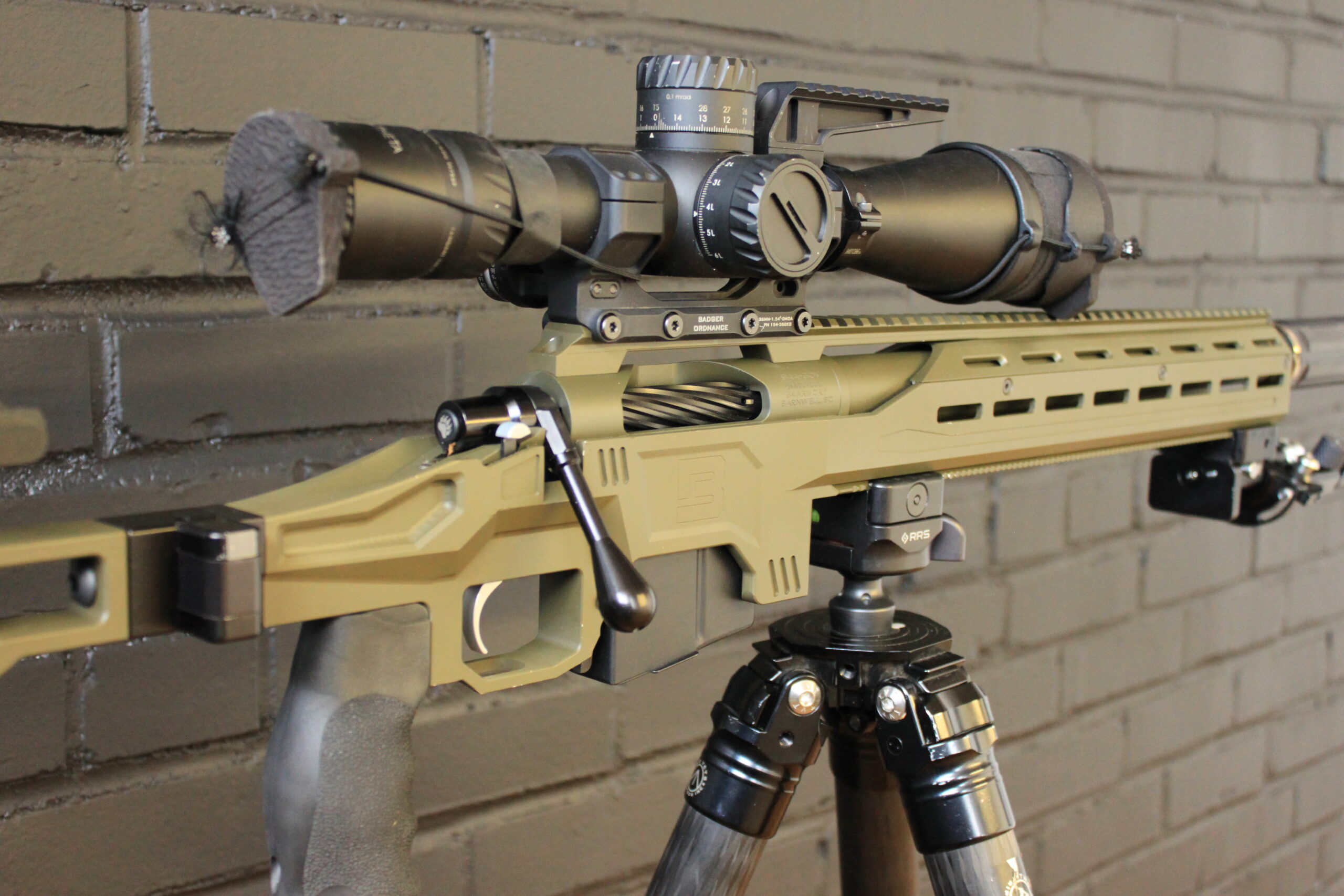

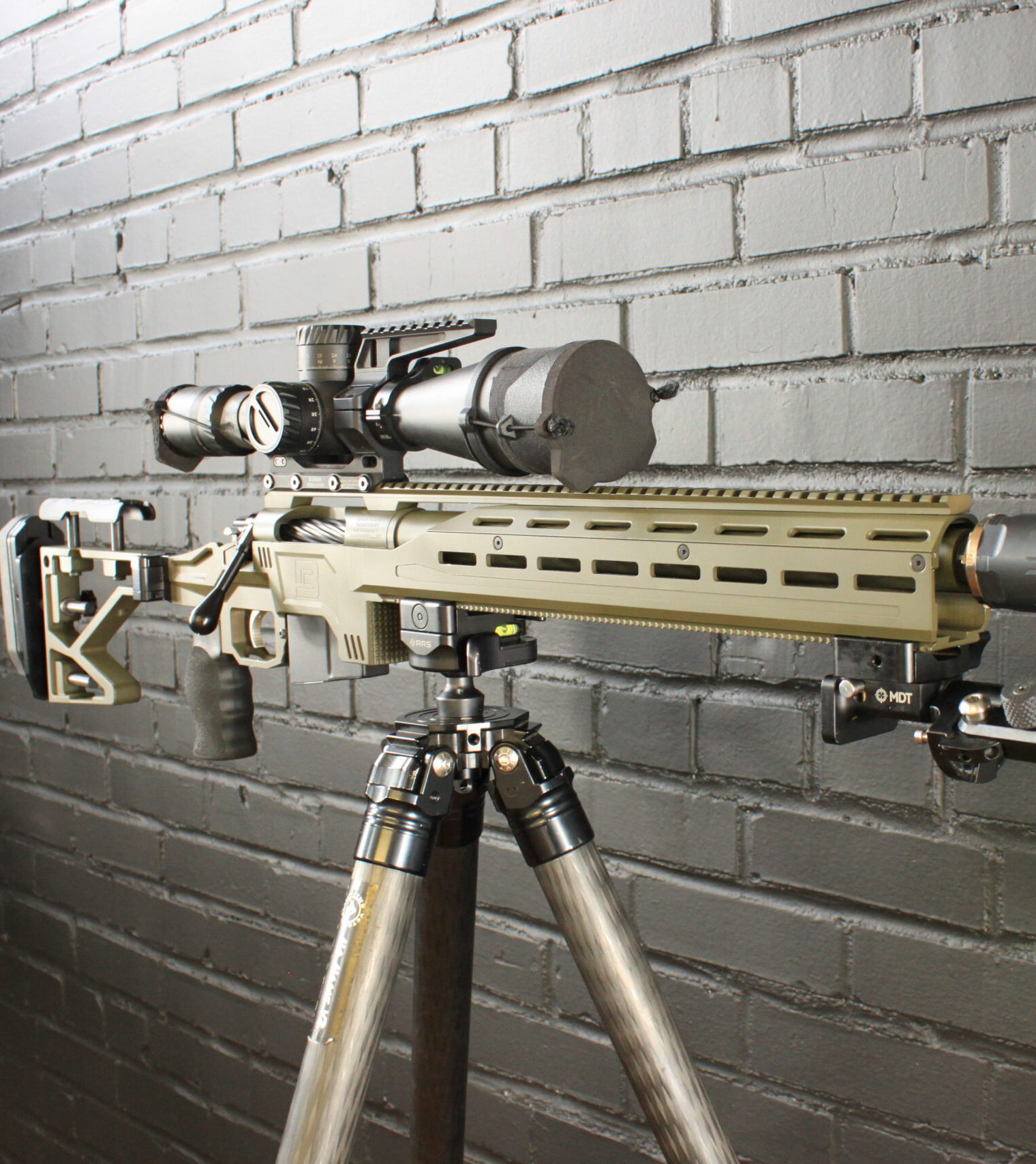

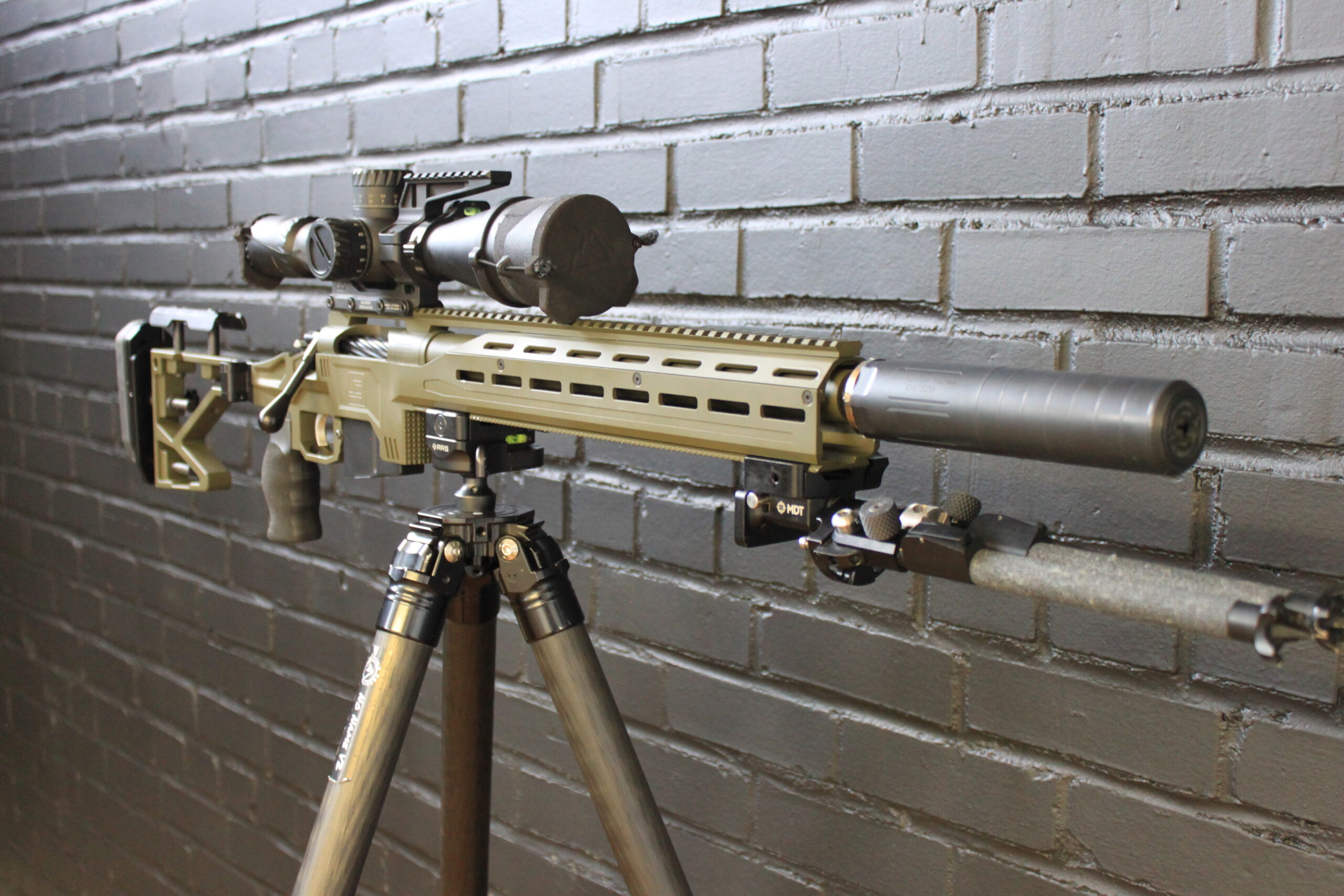

Pictured with all available options. Base Chassis is with a fixed stock and open top forend. This gives the user the ability to set the chassis up the way they need.
